PANDA FORCE — Hydraulic Rotary Disc Cutting Attachment

Excavator Brush Cutter

The PANDA FORCE excavator brush cutter is a hydraulic rotary disc attachment engineered for 5–30 tonne excavators. Unlike a flail mower, the brush cutter uses one or more large rotating discs with fixed blades to deliver a clean, precise cut on dense vegetation, scrub and woody brush. It is the preferred choice where cut quality, clean stem finish and selective cutting are priorities over mulching.

SOOSAN Engineered
European Hydraulics
ISO Certified
CE Marked
OEM / ODM Available
Global Shipping

Complete Buyer's Guide

What Is an Excavator Brush Cutter?

An excavator brush cutter is a hydraulic attachment that mounts to the arm of an excavator and uses one or more high-speed rotating cutting discs to cut dense vegetation, woody brush, saplings and small trees. Unlike a flail mower — which uses a drum fitted with multiple free-swinging flails — a brush cutter uses a fixed or semi-fixed cutting disc that rotates at high speed and cuts vegetation with a clean, precise action similar to a large circular saw.

The excavator brush cutter is the preferred tool when clean, precise cutting is required rather than mulching. Where a flail mower shreds vegetation into fine particles and returns them to the ground, a brush cutter cuts stems cleanly at the base, leaving cut material on the ground for collection or natural decomposition. This makes the brush cutter the correct choice for selective vegetation management, invasive species removal, orchard and vineyard work, and applications where the cut material needs to be removed rather than mulched in place.

PANDA FORCE excavator brush cutters are manufactured by SOOSAN Heavy Industries Co., Ltd., a Korean industrial manufacturer with over 30 years of hydraulic engineering expertise. The PF-EBC Series covers excavators from 3 tonnes to 25 tonnes with working widths from 600mm to 1,600mm, providing a comprehensive range for contractors, municipal operators and agricultural businesses.

Excavator Brush Cutter vs Excavator Flail Mower: Which Do You Need?

The choice between an excavator brush cutter and an excavator flail mower depends on the application, material type and the desired outcome. Both are hydraulic excavator attachments for vegetation management, but they work differently and produce different results.

A flail mower is the better choice when the goal is to cut and mulch vegetation in a single pass, returning fine material to the ground as a natural mulch. Flail mowers are highly productive on grass, light brush and mixed vegetation, and the mulch output eliminates the need for cut material collection. They are the standard choice for roadside maintenance, canal bank management, slope mowing and general vegetation control.

A brush cutter is the better choice when clean, precise cutting is required — when you need to cut specific plants while leaving others undamaged, when the cut material needs to be removed rather than mulched, or when you are working in dense woody vegetation where a flail mower would struggle. Brush cutters are particularly effective on saplings, dense scrub, invasive species and woody material up to 150mm diameter.

In practice, many contractors operate both types of attachment — a flail mower for general maintenance and a brush cutter for heavier clearing work. PANDA FORCE offers both types in compatible mounting configurations, making it straightforward to operate both attachments on the same excavator with a quick coupler change.

The key technical difference is in how each attachment handles impact with hard objects. A flail mower's free-swinging flails deflect when they hit a rock or stump, absorbing the impact without damage. A brush cutter's cutting disc is more rigid and can be damaged by hard impacts — making it less suitable for rocky terrain or areas with buried debris. For stony ground, a flail mower with carbide-tipped flails is the safer choice.

Excavator Brush Cutter Applications

Invasive species removal is one of the most important applications for excavator brush cutters. Species such as Japanese knotweed, Himalayan balsam, giant hogweed and rhododendron require targeted cutting at the base of the plant — a task that a flail mower cannot perform with the required precision. The brush cutter's clean cutting action allows the operator to cut specific plants while leaving surrounding vegetation undamaged.

Orchard and vineyard management requires precise cutting between tree rows and under tree canopies without damaging the trees themselves. The excavator brush cutter's reach and positioning capability, combined with its clean cutting action, makes it ideal for this application. The attachment can be angled to cut at the base of tree trunks and along fence lines without the risk of wrapping or entanglement that can occur with flail mowers.

Forestry and woodland management applications include selective thinning of young woodland, removal of suppressed growth, clearing of rides and firebreaks, and management of woodland edges. The brush cutter's ability to cut stems cleanly at the base makes it suitable for selective work where the goal is to remove specific plants while retaining others.

Construction site clearance requires rapid removal of dense vegetation before earthworks begin. The excavator brush cutter can clear dense scrub, saplings and light woodland quickly, with the excavator arm providing the reach and force needed to work through dense material. The cut material can be pushed into windrows for collection and disposal.

Municipal and amenity applications include tree pit maintenance, hedge base management, cemetery clearance and management of overgrown public spaces. The brush cutter's precision makes it suitable for work in confined spaces and around existing planting where a flail mower would cause collateral damage.

Selecting the Right Excavator Brush Cutter: Technical Considerations

Cutting disc diameter and blade configuration determine the maximum stem diameter the brush cutter can handle and the cutting speed. Larger diameter discs with more cutting blades handle heavier material but require more hydraulic power. The PANDA FORCE PF-EBC Series is available with single-disc and twin-disc configurations to match different application requirements.

Excavator weight class and hydraulic flow must be matched to the brush cutter specification. Brush cutters typically require 40–120 L/min depending on disc size and configuration. The carrier excavator must be capable of supplying the required flow rate at the correct operating pressure. PANDA FORCE technical staff will verify compatibility before confirming a specification.

Blade material and replacement are important maintenance considerations. PANDA FORCE brush cutter blades are manufactured from high-strength alloy steel with hardened cutting edges. Replacement blades are available as standard spare parts. The blade replacement procedure is straightforward and can be performed in the field without specialist tools.

Safety features are critical for brush cutter operation. The PANDA FORCE PF-EBC Series incorporates a full-width rear deflector to contain cut material, a hydraulic motor protection valve to prevent overspeed, and a robust blade guard system. All models carry CE marking under the EU Machinery Directive, confirming compliance with European safety requirements.

PANDA FORCE PF-EBC Series: Engineering and Manufacturing

The PANDA FORCE PF-EBC Series excavator brush cutter is designed and manufactured by SOOSAN Heavy Industries Co., Ltd. at its production facility in South Korea. The manufacturing process follows SOOSAN's established quality standards: laser cutting of structural components, robotic welding, CNC machining of disc hubs and bearing housings, shot blasting and powder coating, hydraulic assembly and pressure testing, and full functional testing before despatch.

The cutting disc assembly uses high-strength alloy steel blades with hardened cutting edges for maximum service life. The disc hub and bearing assembly are engineered for the high radial and axial loads generated during brush cutting, with sealed bearings rated for continuous operation in wet and abrasive conditions. The hydraulic motor is sourced from established European suppliers and is specified to match the flow and pressure requirements of each model.

All PANDA FORCE excavator brush cutters carry CE marking under the EU Machinery Directive (2006/42/EC) and are manufactured under ISO 9001 quality management certification. The attachment is compatible with all major excavator brands via machine-specific mounting brackets and hydraulic hose kits. OEM and ODM manufacturing is available for dealers and distributors.

Engineering Features

Key Features & Technical Advantages

High-Speed Rotary Disc System

Single or dual high-speed rotating disc with replaceable fixed blades delivers a clean, precise cut on vegetation up to 120mm diameter. Higher tip speed than flail mowers produces a cleaner stem finish on woody material.

Precision Blade Geometry

Engineered blade geometry optimised for clean cutting rather than mulching. Blades are individually replaceable and reversible, doubling blade life before replacement is required.

Compact Single-Disc Design

Single-disc models offer a compact, lightweight design for 5–15 tonne excavators. The narrow profile allows precise positioning in tight spaces and selective cutting around obstacles.

Dual-Disc Wide-Body Option

Dual-disc models provide wider working widths (up to 1,600mm) for higher productivity on open terrain while maintaining the clean cut quality of the rotary disc system.

Hydraulic Motor with Freewheel

High-speed hydraulic motor with integrated freewheel allows the disc to decelerate safely after hydraulic flow is stopped. Prevents hydraulic shock and protects the motor and circuit.

Blade Guard System

Full-coverage blade guard system with front and rear deflectors contains cut material and prevents projectile ejection. The guard geometry is optimised for the rotary disc cutting pattern.

Floating Head Option

Optional floating head mechanism allows the cutting disc to follow ground contours independently of the excavator arm position. Maintains consistent cutting height on uneven terrain without constant operator adjustment.

Tilt Rotator Compatibility

Compatible with hydraulic tilt rotators for maximum positioning flexibility. The tilt rotator allows the cutting disc to be angled precisely for selective cutting, slope work and tight-access applications.

Low-Maintenance Blade System

Reversible, individually replaceable blades with simple bolt-on mounting. Blade changes can be completed in the field without specialist tools. Blade life is typically 3–5 times longer than flail mower flails on equivalent material.

Technical Data

Technical Specifications

Working Dimensions

Disc Diameter (Single)600mm – 1,000mm
Working Width (Dual-Disc)900mm – 1,600mm
Attachment Weight180kg – 750kg
Cutting Height Range0mm – 200mm (floating head option)
Max Cutting DiameterUp to 120mm (single-disc models)

Hydraulic Requirements

Required Flow Rate40 – 120 L/min
Operating Pressure180 – 320 bar
Motor TypeHigh-speed hydraulic motor with freewheel
Hydraulic ConnectionBSP / SAE — machine-specific kit
Disc Speed1,200 – 2,400 RPM (model-dependent)

Compatible Excavator Sizes

Minimum Excavator Weight5 tonnes
Maximum Excavator Weight30 tonnes
Recommended Carrier Weight8 – 20 tonnes
Coupler CompatibilityS-bracket, pin-on, hydraulic quick coupler, tilt rotator
Compatible BrandsCAT, Komatsu, Volvo, Liebherr, Doosan, Hyundai, Hitachi, JCB, Kobelco

Construction

Housing MaterialHigh-strength structural steel
Disc MaterialHigh-strength steel, dynamically balanced
BladesHardox 500 (reversible, individually replaceable)
Surface TreatmentShot-blast + 2-coat industrial epoxy
CertificationCE Marked, ISO Manufactured

Blade / Flail Options

Standard Fixed Blade
Hardox 500 fixed blade for clean cutting of grass, brush and woody material up to 80mm diameter. Reversible for double blade life.
Best for: General brush cutting, scrub clearing, roadside vegetation, orchard management
Heavy-Duty Fixed Blade
Thicker-section Hardox 500 blade for heavy brush and woody material up to 120mm diameter in demanding conditions.
Best for: Dense scrub, heavy brush, invasive species, tough woody vegetation
Tungsten Carbide Blade
Tungsten carbide-tipped blade for maximum wear resistance in rocky, stony and abrasive conditions.
Best for: Rocky terrain, stony verges, quarry site vegetation, abrasive conditions
Serrated Blade
Serrated edge blade for improved cutting performance on fibrous, stringy vegetation including reeds, rushes and tall grass.
Best for: Wetland vegetation, reed beds, rush management, tall grass cutting
PANDA FORCE excavator flail mower precision engineering and manufacturing detail

Applications & Industries

Where It Works

01

Selective Brush Clearing

Precise selective cutting of individual shrubs, saplings and brush while preserving surrounding vegetation — not possible with a flail mower.

02

Orchard & Vineyard Management

Clean-cut vegetation management in orchards and vineyards where cut quality and precision around tree trunks is important.

03

Roadside Scrub Control

Cutting of roadside scrub, hedgerow overhang and verge vegetation where a clean cut finish is required for appearance.

04

Wetland & Reed Bed Management

Cutting of reeds, rushes and wetland vegetation in drainage channels, reed beds and wetland habitats.

05

Amenity & Landscape Maintenance

High-quality vegetation management in parks, estates and amenity areas where cut appearance is important.

06

Invasive Species Control

Selective cutting of invasive species in sensitive ecological areas where mulching would spread propagules.

07

Pipeline & Utility Corridors

Vegetation management along pipeline and utility corridors where clean cutting is preferred over mulching.

08

Slope & Embankment Cutting

Clean cutting of vegetation on slopes and embankments where a neat, maintained appearance is required.

Industries Served

Landscaping and Amenity Grounds Maintenance Companies
Orchard and Vineyard Operators
Road and Highway Maintenance Contractors
Wetland and Water Authority Contractors
Ecological and Conservation Management Organisations
Estate and Land Management Companies
Municipal Parks and Open Spaces Departments
Utility and Pipeline Infrastructure Operators
Golf Course and Sports Ground Managers
Invasive Species Management Contractors

Performance Benefits

  • Clean, precise cut finish — superior to flail mowers for applications where cut quality matters
  • Selective cutting capability — can target individual plants while preserving surrounding vegetation
  • Reversible blades deliver double blade life before replacement — lower consumable cost than flails
  • Higher tip speed than flail mowers produces cleaner stem finish on woody material
  • Floating head option maintains consistent cutting height on uneven terrain automatically
  • Tilt rotator compatibility provides maximum positioning flexibility for precision work
  • Suitable for wetland and reed bed management where flail mowers struggle with fibrous material

Why Upgrade

Excavator Brush Cutter vs Excavator Flail Mower — Which Is Right for You?

Aspect
PANDA FORCE Flail Mower
Traditional Method
Cut Quality
Clean, precise cut — superior finish on woody stems
Flail mower: shredded/mulched finish — not suitable where cut quality matters
Material Handling
Cut material left in place (not mulched) — may require collection
Flail mower: mulches material in-pass — no collection required
Selective Cutting
Precise targeting of individual plants possible
Flail mower: cuts everything in the working width — not selective
Fibrous Vegetation
Serrated blade option handles reeds and rushes effectively
Flail mower: can struggle with fibrous, stringy wetland vegetation
Blade Life
Reversible blades — 3–5x longer life than flail mowers on equivalent material
Flail mower: flails wear faster, especially on abrasive material
Mulching Capability
Not a mulcher — cut material is not processed
Flail mower: mulches material to fine particles — better for soil return
Dense Brush Productivity
Effective on brush up to 120mm diameter
Flail mower: similar capability; mulching models handle larger diameter
Best Application
Where cut quality, selectivity or fibrous vegetation are priorities
Flail mower: where mulching, productivity and material disposal are priorities

Why Choose PANDA FORCE

The PANDA FORCE Advantage

01

SOOSAN Engineering Heritage

Backed by 30+ years of heavy machinery manufacturing from SOOSAN Heavy Industries Co., Ltd. — one of Korea's most respected industrial groups. Every PANDA FORCE attachment inherits SOOSAN's engineering standards and quality control processes.

02

European Hydraulic Components

We specify premium European hydraulic motors, orbital motors, valves and sealing systems from established suppliers. This ensures maximum performance, reliability and long service life in demanding field conditions.

03

ISO-Certified Manufacturing

Our production facilities operate under ISO quality management standards with full traceability from raw material to finished product. Every unit undergoes hydraulic pressure testing and functional verification before dispatch.

04

CE Marked for European Markets

PANDA FORCE attachments carry CE marking for compliance with European Machinery Directive requirements, enabling direct use on European construction and municipal fleets without additional certification.

05

OEM & ODM Capability

Full private-label and custom engineering capability for dealers, distributors and rental companies. We produce attachments under your brand with custom specifications, colours and documentation.

06

Global Technical Support

Dedicated dealer network and technical support across Europe, North America, Australia and Asia. Spare parts availability, service documentation and technical assistance for the full product lifetime.

SOOSAN Heavy Industries manufacturing facility — PANDA FORCE quality control
Manufacturer
SOOSAN Heavy Industries Co., Ltd.

About SOOSAN Heavy Industries Co., Ltd.

SOOSAN Heavy Industries Co., Ltd. is a Korean heavy machinery manufacturer with over 30 years of experience producing hydraulic attachments, rock drills, breakers and excavator equipment for the global market. SOOSAN products are used by contractors, mining companies and municipalities across more than 60 countries.

PANDA FORCE was launched in 2026 as SOOSAN's dedicated global brand for excavator vegetation management attachments — bringing the same engineering rigour and manufacturing precision to flail mowers, brush cutters and mulching heads that SOOSAN applies to its entire product range.

30+
Years Manufacturing
60+
Countries
ISO
Certified

FAQ

Frequently Asked Questions

Ready to Specify Your Excavator Brush Cutter?

Contact our technical sales team for a specification recommendation, compatibility check and competitive quote.

Industry Applications

PANDA FORCE flail mowers are specified across a wide range of industries. Explore the application guides below for working conditions, recommended models, blade selection and real-world use cases.

Machine Compatibility

Compatible Excavator Brands

PANDA FORCE flail mowers are engineered for universal compatibility with all major excavator manufacturers. Each unit is supplied with a machine-specific hydraulic hose kit and mounting bracket. Verify your excavator's auxiliary flow rate before ordering.

Caterpillar (CAT)40–220 L/min
Models: 305–395, 308–336, 349–395
Weight: 5–95 t
Standard auxiliary circuit on all Cat excavators. High-flow auxiliary available on 320+ as factory option. S-bracket and pin-on mounting kits available.
Komatsu30–200 L/min
Models: PC30–PC490, HB365
Weight: 3–49 t
Komatsu auxiliary circuit uses SAE O-ring face seal fittings. High-flow auxiliary standard on PC200-8 and above. Hydraulic quick coupler kits available.
Hitachi20–180 L/min
Models: ZX17–ZX490, ZX200–ZX350
Weight: 1.7–49 t
Hitachi ZX series uses BSP fittings on auxiliary circuit. Auxiliary flow rates vary significantly by model — verify before ordering. Mounting kits for all ZX series.
Volvo20–220 L/min
Models: EC15–EC750, ECR25–ECR235
Weight: 1.5–75 t
Volvo auxiliary circuit uses BSP fittings. EC series has high-flow auxiliary as standard on EC220 and above. ECR compact radius models have restricted auxiliary flow.
Hyundai35–200 L/min
Models: HX35–HX900, R55–R520
Weight: 3.5–92 t
Hyundai R-series uses SAE O-ring face seal fittings. High-flow auxiliary standard on R210 and above. Full mounting bracket range available for current and previous generation.
Doosan / Develon35–180 L/min
Models: DX35–DX530, DX140–DX380
Weight: 3.5–53 t
Doosan/Develon auxiliary circuit uses BSP fittings. DX series has proportional auxiliary control as standard on DX140 and above. Mounting kits for all current models.
Bobcat20–80 L/min
Models: E10–E165, E32–E88
Weight: 1–16.5 t
Bobcat E-series compact excavators have auxiliary flow rates of 20–80 L/min depending on model. Suitable for PF-MEF mini series only. Pin-on and quick coupler mounting available.
Kubota18–55 L/min
Models: KX016–KX080, U17–U55
Weight: 1.6–8 t
Kubota mini excavators have auxiliary flow rates of 18–55 L/min. Suitable for PF-MEF mini series. Kubota uses BSP fittings on auxiliary circuit. Mounting kits for all KX and U series.
JCB15–160 L/min
Models: 8008–8085, JS130–JS370
Weight: 0.8–37 t
JCB 8-series mini excavators and JS-series full-size excavators. JCB uses BSP fittings. High-flow auxiliary available on JS200 and above. Full mounting bracket range available.
SANY20–200 L/min
Models: SY16–SY750, SY135–SY365
Weight: 1.6–75 t
SANY excavators use SAE O-ring face seal fittings on auxiliary circuit. Auxiliary flow rates comparable to equivalent Komatsu/Hitachi models. Mounting kits for all current SANY models.
XCMG20–200 L/min
Models: XE15–XE750, XE135–XE370
Weight: 1.5–75 t
XCMG excavators use SAE O-ring face seal fittings. Auxiliary flow rates comparable to equivalent Komatsu models. Mounting kits available for all current XCMG production models.

Don't see your machine? Contact our technical team with your excavator make, model and hydraulic specification for a compatibility check.

Hydraulic Specification

Hydraulic Requirements by Model

Matching the attachment to your excavator's auxiliary hydraulic circuit is critical for performance and motor longevity. Insufficient flow causes low rotor speed and poor cutting. Excess flow risks motor overspeed. All values are at rated operating temperature (50–60°C oil temperature).

ModelWorking WidthOil Flow (L/min)Pressure (bar)Rotor Speed (RPM)Motor DisplacementRecommended Excavator
PF-EBC-600600mm40–60180–2502,000–2,80080cc/rev3–8 t
PF-EBC-800800mm50–80180–2801,900–2,600100cc/rev5–12 t
PF-EBC-10001,000mm60–100200–3001,800–2,400125cc/rev7–15 t
PF-EBC-12001,200mm80–110200–3201,700–2,200160cc/rev10–18 t
PF-EBC-16001,600mm90–120220–3201,600–2,000200cc/rev14–25 t
Flow Tolerance
±10% of rated flow
Operating outside this range voids motor warranty
Relief Valve
Factory-set + field-adjustable
Protects motor from pressure spikes on hard impact
Case Drain
Required on all models
Must return to tank, not to return line — max 3 bar back-pressure

Full Range Overview

PANDA FORCE Flail Mower Model Comparison

All PANDA FORCE flail mower models in one table. Use this to identify the correct model for your excavator weight class and application. Highlighted row indicates the most commonly specified model for this product category.

ModelWorking WidthMachine WeightOil FlowPressureBlade TypeSuitable Excavator
PF-MEF600–1,000mm80–350 kg20–60 L/min150–250 barY-blade / Knife1.5–6 t mini excavator
PF-EFM600–2,000mm280–1,100 kg40–180 L/min180–350 barY-blade / Hammer / Carbide5–35 t excavator
PF-HFM900–1,800mm420–1,200 kg80–180 L/min200–350 barHammer / Carbide10–35 t high-flow excavator
PF-FFM1,000–2,000mm600–1,600 kg100–200 L/min200–380 barHeavy Hammer / Carbide15–40 t excavator
PF-HDF1,200–2,200mm800–2,200 kg120–220 L/min200–380 barHeavy Hammer / Carbide20–50 t large excavator
PF-EBCPopular600–1,600mm200–900 kg40–120 L/min180–320 barRotary disc / Fixed blade3–25 t excavator

Blade Selection Guide

Choosing the Right Flail Blade

Blade selection is the single most important factor in cutting performance, blade service life and operating cost. The correct blade for your application reduces fuel consumption, extends replacement intervals and improves mulch quality. Incorrect blade selection is the most common cause of premature wear and poor performance.

Fixed Disc Blade (Standard)

High-carbon steel disc, hardened cutting edge, 6–10mm thickness
Tip Speed
80–100 m/s
Max Diameter
Up to 100mm
Replace Interval
100–200 ha — inspect cutting edge condition regularly
Best For
  • Dense brush and scrub clearance
  • Saplings and woody stems up to 100mm diameter
  • Invasive species removal (rhododendron, knotweed)
  • Construction site vegetation clearance
  • Orchard and vineyard selective cutting
Not Recommended For
  • ✕Rocky or stony terrain — disc edge damage risk
  • ✕Fine grass cutting where mulch quality is required

Swing Blade (Semi-Fixed)

Alloy steel swing blades on pivot pins, heat-treated to 48–52 HRC
Tip Speed
70–90 m/s
Max Diameter
Up to 80mm
Replace Interval
150–300 ha depending on terrain
Best For
  • Mixed terrain with occasional rocks and debris
  • Roadside and verge clearance with stone risk
  • Agricultural land with buried debris
  • General scrub clearance on varied terrain
Not Recommended For
  • ✕Precision selective cutting requiring clean stem cut
  • ✕Very dense woody material above 80mm diameter

Carbide-Tipped Disc Blade

Alloy steel disc with brazed tungsten carbide tip inserts
Tip Speed
65–85 m/s
Max Diameter
Up to 80mm
Replace Interval
400–800 ha in abrasive conditions
Best For
  • Rocky and stony terrain where standard blades wear rapidly
  • Gravel verges and road margins with stone content
  • Quarry and mining site vegetation management
  • Coastal and beach area maintenance
Not Recommended For
  • ✕High-speed fine cutting — tip speed lower than standard disc
  • ✕Applications where carbide cost is not justified by wear conditions

Not sure which blade to specify?

Our technical team can recommend the correct blade type based on your application, material type, soil conditions and excavator specification. Incorrect blade selection is the most common cause of premature wear — get it right before you order.

Ask a Technical Question

Real-World Applications

Each application environment has distinct requirements for excavator size, blade type, working width and hydraulic specification. The following profiles are based on real contractor and operator use cases.

🌿

Invasive Species Removal

Typical Use Cases
  • Japanese knotweed stem cutting at ground level
  • Rhododendron and cherry laurel clearance
  • Giant hogweed and Himalayan balsam removal
  • Sycamore and ash regeneration control in woodland
Excavator Size
5–15 t (600–1,000mm working width)
Blade Recommendation
Fixed disc blade for clean stem cut at base
Productivity Note
Clean cut at base level is more effective than mulching for invasive species control — reduces regrowth energy.
🍇

Orchard & Vineyard

Typical Use Cases
  • Selective cutting between vine rows without mulching
  • Under-tree canopy clearance in orchards
  • Fence line and post base clearance
  • Soft fruit plantation selective vegetation management
Excavator Size
5–10 t (600–800mm working width)
Blade Recommendation
Fixed disc blade for clean cut; swing blade on stony ground
Productivity Note
Precise arm positioning allows cutting at tree base without bark damage — not possible with flail mowers.
🏗️

Construction Site Clearance

Typical Use Cases
  • Dense scrub and sapling clearance before earthworks
  • Hedgerow and boundary vegetation removal
  • Brownfield site vegetation clearance
  • Access road and haul route clearance
Excavator Size
8–20 t (800–1,200mm working width)
Blade Recommendation
Fixed disc blade for maximum cutting capacity
Productivity Note
Brush cutter clears dense scrub and saplings up to 100mm diameter — faster than manual methods on large sites.
🌲

Forestry Selective Thinning

Typical Use Cases
  • Selective removal of suppressed growth in young woodland
  • Woodland edge and ride management
  • Clearing of brash and light timber after felling
  • Habitat management — scrub control in conservation areas
Excavator Size
8–18 t (800–1,200mm working width)
Blade Recommendation
Fixed disc blade for selective stem cutting
Productivity Note
Selective cutting capability allows removal of target species while leaving adjacent vegetation undamaged.
🏙️

Municipal Amenity

Typical Use Cases
  • Overgrown public space clearance
  • Cemetery and churchyard scrub removal
  • Urban tree pit and planting area maintenance
  • Derelict land clearance for redevelopment
Excavator Size
5–12 t (600–1,000mm working width)
Blade Recommendation
Swing blade for mixed urban terrain with debris risk
Productivity Note
Compact attachment dimensions allow working in confined urban spaces inaccessible to larger machinery.
🌊

Riverbank & Waterway

Typical Use Cases
  • Riparian vegetation management on steep bank faces
  • Willow and alder coppicing on watercourse banks
  • Reed bed and marginal vegetation cutting
  • Drainage ditch and channel bank clearance
Excavator Size
8–18 t (800–1,200mm working width)
Blade Recommendation
Fixed disc blade for clean stem cutting of woody riparian species
Productivity Note
Clean cut at base level promotes coppice regrowth — preferred method for willow and alder management on watercourses.

Engineering Specification

Component Engineering Details

Every major component in a PANDA FORCE flail mower is specified, sourced and tested to defined engineering standards. The following details the specification, function and material standard for each critical component.

Rotor DrumØ200–320mm solid steel

Carries flail blades at high rotational speed. Stores kinetic energy to maintain cutting performance through dense material. Precision-balanced to minimise vibration transfer to excavator arm.

S355J2 structural steel, CNC-machined end plates · ISO 1940 G6.3 balance
Hydraulic MotorOrbital / gerotor, 80–500cc/rev

Converts hydraulic flow from excavator auxiliary circuit into rotor shaft rotation. High-torque, low-speed motor matched to rotor inertia and cutting load requirements.

European-sourced (Danfoss / Parker / Bosch Rexroth) · ISO 4413 hydraulic safety
Rotor BearingsDouble-sealed spherical roller, C3 clearance

Supports rotor drum radial and axial loads during operation. Double-sealed design excludes water, mud and abrasive particles. C3 internal clearance accommodates thermal expansion at operating temperature.

SKF / FAG / NSK bearing steel · ISO 281 bearing life calculation
Flail Carrier PinsØ30–50mm alloy steel, case-hardened

Pivot point for free-swinging flail blades. Must withstand repeated high-impact loads from blade contact with vegetation and ground. Case-hardened surface with tough core for impact resistance.

42CrMo4 alloy steel, case-hardened to 58–62 HRC surface
Hydraulic Relief ValveFactory-set, field-adjustable ±20%

Limits maximum hydraulic pressure in the motor circuit. Protects motor from pressure spikes caused by sudden rotor deceleration on hard impact. Prevents hydraulic hose and fitting failure.

Cartridge valve, steel body, NBR seals · ISO 4413
Floating Head / Skid SystemRear roller Ø100mm or front skids

Maintains consistent cutting height by following ground contour. Rear roller provides smooth height control on even ground. Front skids used on rough or stony terrain where roller would be damaged.

Hardox 400 skids, S355 roller with replaceable end caps
Rear DeflectorFull-width rubber curtain, 12–20mm thick

Contains cut material within the housing and prevents projectile ejection rearward. Critical safety component for roadside operation near traffic. Must be inspected and replaced when worn below minimum thickness.

Natural rubber compound, steel-reinforced on heavy-duty models · EU Machinery Directive 2006/42/EC
Side Wear PlatesHardox 400 / Hardox 500, 8–16mm

Protect main housing side walls from abrasion by cut material circulating inside the housing. Individually replaceable to extend main housing service life. Hardox 500 specified for rocky and stony applications.

SSAB Hardox 400 or Hardox 500 certified wear steel · Hardox Wearparts certified
Quick Coupler InterfaceS-bracket or pin-on, machine-specific

Connects attachment to excavator arm. S-bracket allows use with hydraulic quick couplers. Pin-on configuration for direct attachment without coupler. Machine-specific bracket ensures correct geometry and load path.

S355J2 structural steel, hot-dip galvanised or painted
Safety Chain / Retention SystemGrade 80 chain, rated to 2× attachment weight

Secondary retention in the event of quick coupler failure. Required by EU Machinery Directive for attachments above a defined weight threshold. Chain must be inspected at each attachment change.

Grade 80 alloy steel chain with forged hooks · EN 818-2, EU Machinery Directive

SOOSAN Manufacturing Process

Production Process & Quality Control

Every PANDA FORCE flail mower passes through SOOSAN Heavy Industries' full production process at the Chungcheongnam-do facility in South Korea. The following describes each production stage, the process parameters and the quality standard applied.

01

Raw Material Receipt & Inspection

ISO 9001

Structural steel (S355JR/S355J2), Hardox 400/500 wear plate and alloy steel for flail components are received with mill certificates. Each batch is inspected for dimensional conformance and material certification before release to production. Non-conforming material is quarantined and returned.

02

Laser Cutting & Plasma Profiling

Main housing plates, side plates and wear components are cut on CNC laser cutting machines to ±0.2mm positional accuracy. Plasma profiling is used for thicker Hardox sections. All cut parts are deburred and edge-prepared before assembly.

03

CNC Machining of Rotor Components

ISO 286

Rotor drum end plates, bearing housings and flail carrier pin bores are machined on CNC turning and milling centres to H7/h6 tolerance class. Bearing housing bores are finish-ground to achieve the required interference fit for bearing installation.

04

Robotic & Manual MIG/MAG Welding

EN ISO 5817

Main housing assembly uses robotic MIG welding for consistent weld quality on repetitive joints. Critical structural joints — rotor bearing housings, mounting bracket interfaces and side plate connections — are completed by certified manual welders to EN ISO 9606-1 qualification. All welds are visually inspected to EN ISO 5817 Level B.

05

Rotor Assembly & Bearing Installation

Rotor drum is assembled with flail carrier pins installed to specified torque. Bearings are installed using hydraulic press to achieve correct interference fit — never hammer-driven. Bearing housings are sealed with specified grease fill before end cap installation.

06

Dynamic Rotor Balancing

ISO 1940 G6.3

Every assembled rotor drum is dynamically balanced on a two-plane balancing machine. Residual imbalance is corrected by addition or removal of balance weights until the rotor meets ISO 1940 G6.3 specification. Balance correction mass and position are recorded on the unit's production record.

07

Shot Blasting & Surface Treatment

ISO 8501-1

Fully assembled housing is shot-blasted to Sa 2.5 surface preparation standard (ISO 8501-1) to remove mill scale, rust and contamination. Two-coat industrial epoxy paint system is applied: zinc-rich primer (60μm DFT) followed by polyurethane topcoat (80μm DFT). Total DFT minimum 140μm.

08

Hydraulic Motor Installation & Pressure Test

Hydraulic motor is installed with new O-ring seals and torqued to specification. All hydraulic connections are pressure-tested at 1.5× rated working pressure for a minimum of 10 minutes. Any leakage results in rejection and rework. Relief valve setting is verified against specification.

09

Functional Run Test

Rotor is run up to rated speed under no-load conditions. Bearing temperature is monitored for 30 minutes — maximum permissible temperature rise is 40°C above ambient. Vibration level is checked against acceptance criteria. Any anomaly triggers investigation before the unit proceeds.

10

Final Inspection & Despatch

ISO 9001

Final inspection covers dimensional verification of mounting interface, visual inspection of all welds and surface treatment, completeness of documentation (CE Declaration, operator manual, spare parts list, hydraulic hose kit), and correct labelling. Inspection record is filed against the unit serial number.

Quality Certifications

ISO 9001:2015
Quality Management System
Full production traceability from raw material receipt to finished goods despatch. Annual third-party audit.
CE Marking
EU Machinery Directive 2006/42/EC
Declaration of Conformity supplied with every unit. Covers all models in the PANDA FORCE range.
ISO 1940 G6.3
Dynamic Rotor Balancing
All rotor drums balanced to G6.3 residual imbalance standard. Reduces vibration transfer to excavator arm.
Hardox Wearparts
SSAB Certified Steel
Wear components manufactured from certified Hardox 400 / Hardox 500 steel with material traceability certificates.

Factory Acceptance Testing

Every unit undergoes a full factory acceptance test before despatch. The test protocol includes: hydraulic pressure test at 1.5× rated working pressure, rotor run-up to rated speed under no-load, bearing temperature check after 30-minute run, visual inspection of all welds and surface treatment, and dimensional verification of mounting interface.

Test certificate available on request

Customer Case Studies

Real-World Results

How contractors and operators worldwide are using PANDA FORCE attachments to solve real vegetation management challenges — with measurable outcomes.

France
Orchard & Viticulture Contractor
PF-EBC-800

Client

Specialist Orchard Management Contractor, Bordeaux Region

⚠

Challenge

Inter-row vegetation management in high-density apple orchards with 2.8-metre row spacing. Tractor-mounted disc mowers caused root damage on headlands; manual strimming was too slow for the 85-hectare estate.

⚙

Solution

PF-EBC-800 Excavator Brush Cutter on a 6-tonne Kubota KX060. Compact working width and precise arm positioning allowed clean cutting between tree rows without root zone disturbance.

✓

Result

Inter-row cutting cycle reduced from 18 days (manual) to 4 days. Zero root zone disturbance recorded. Fruit quality scores improved in the following harvest season, attributed to reduced soil compaction.

"The precision of the excavator arm means we can cut right up to the tree base without any risk of bark damage. The disc cutter gives a much cleaner finish than a flail in the orchard environment."

— Operations Director, Bordeaux Orchard Contractor
Spain
Municipal Parks & Amenity
PF-EBC-600

Client

Municipal Grounds Maintenance Contractor, Catalonia

⚠

Challenge

Roadside and amenity grass cutting in urban areas with dense shrub borders. Existing ride-on mowers could not access shrub margins; manual teams were required for all border cutting.

⚙

Solution

PF-EBC-600 on a 5-tonne Doosan DX55 for urban amenity work. Rotary disc configuration for clean finish on mixed grass and low shrub. Compact machine footprint suitable for urban working.

✓

Result

Manual border cutting teams reduced by 70%. Urban amenity cutting programme completed 2 weeks ahead of schedule. Zero damage to shrub borders or street furniture recorded.

Want to discuss your specific application requirements?

Talk to Our Technical Team
Product Gallery

Photos & Videos

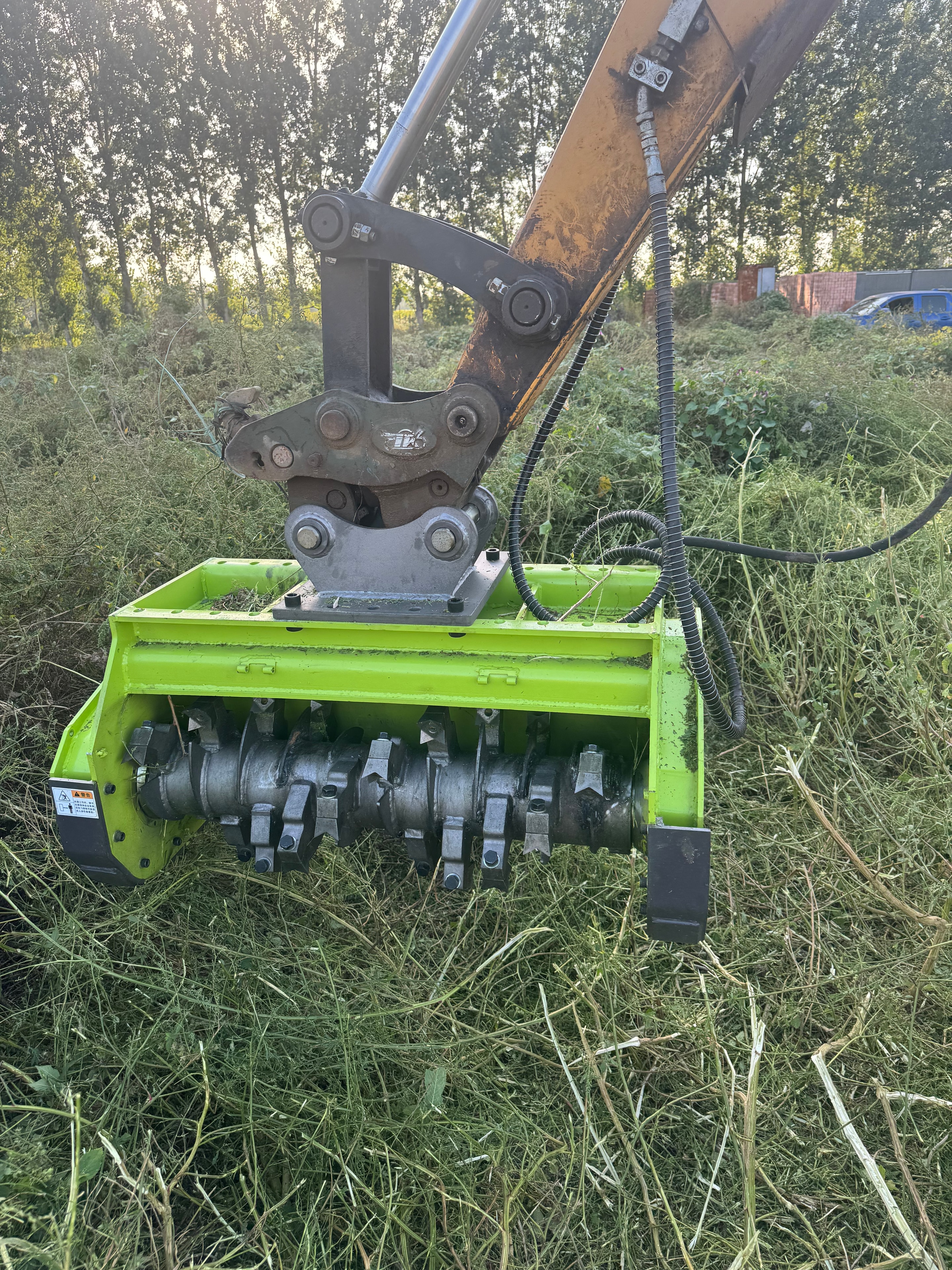

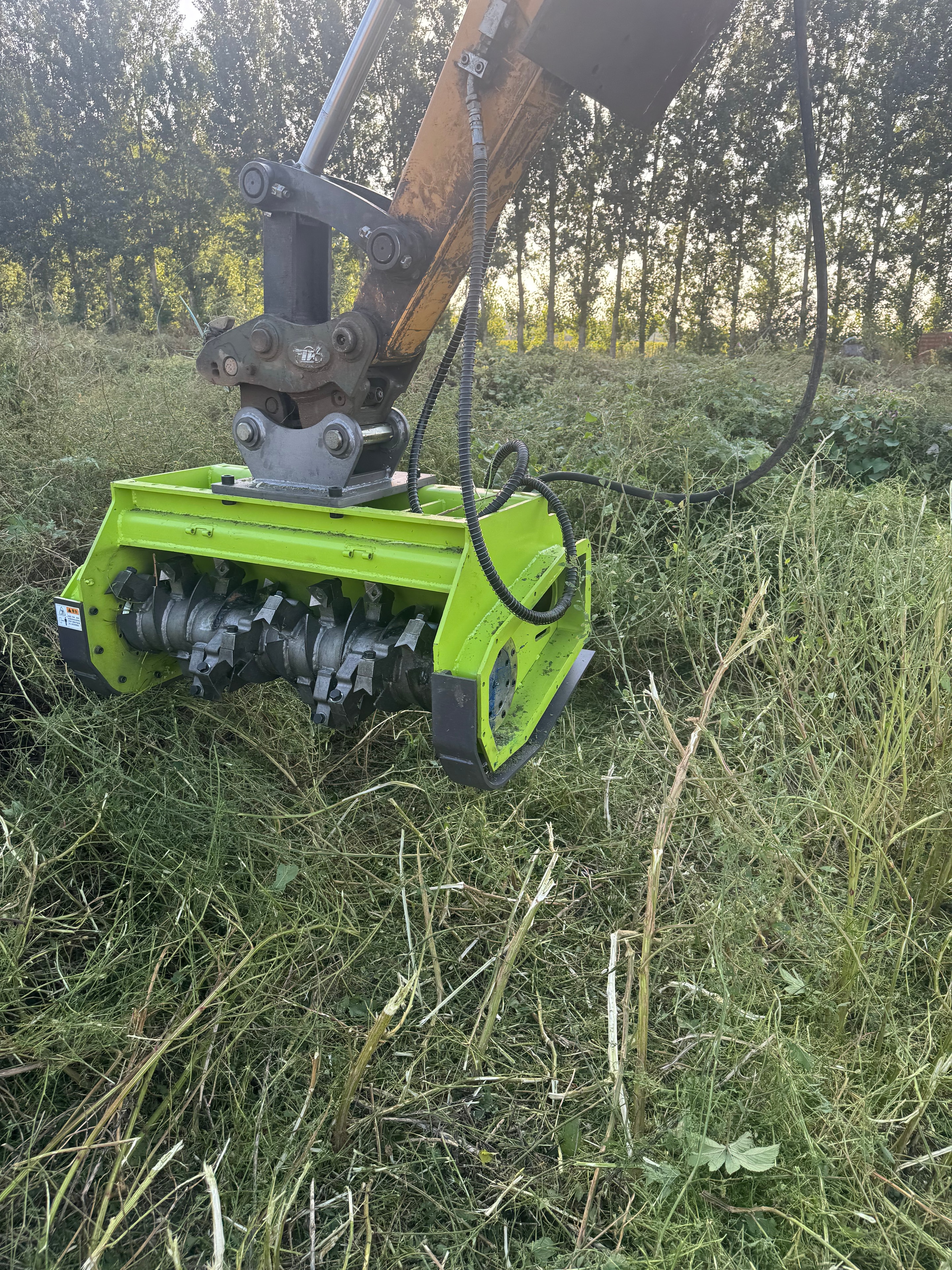

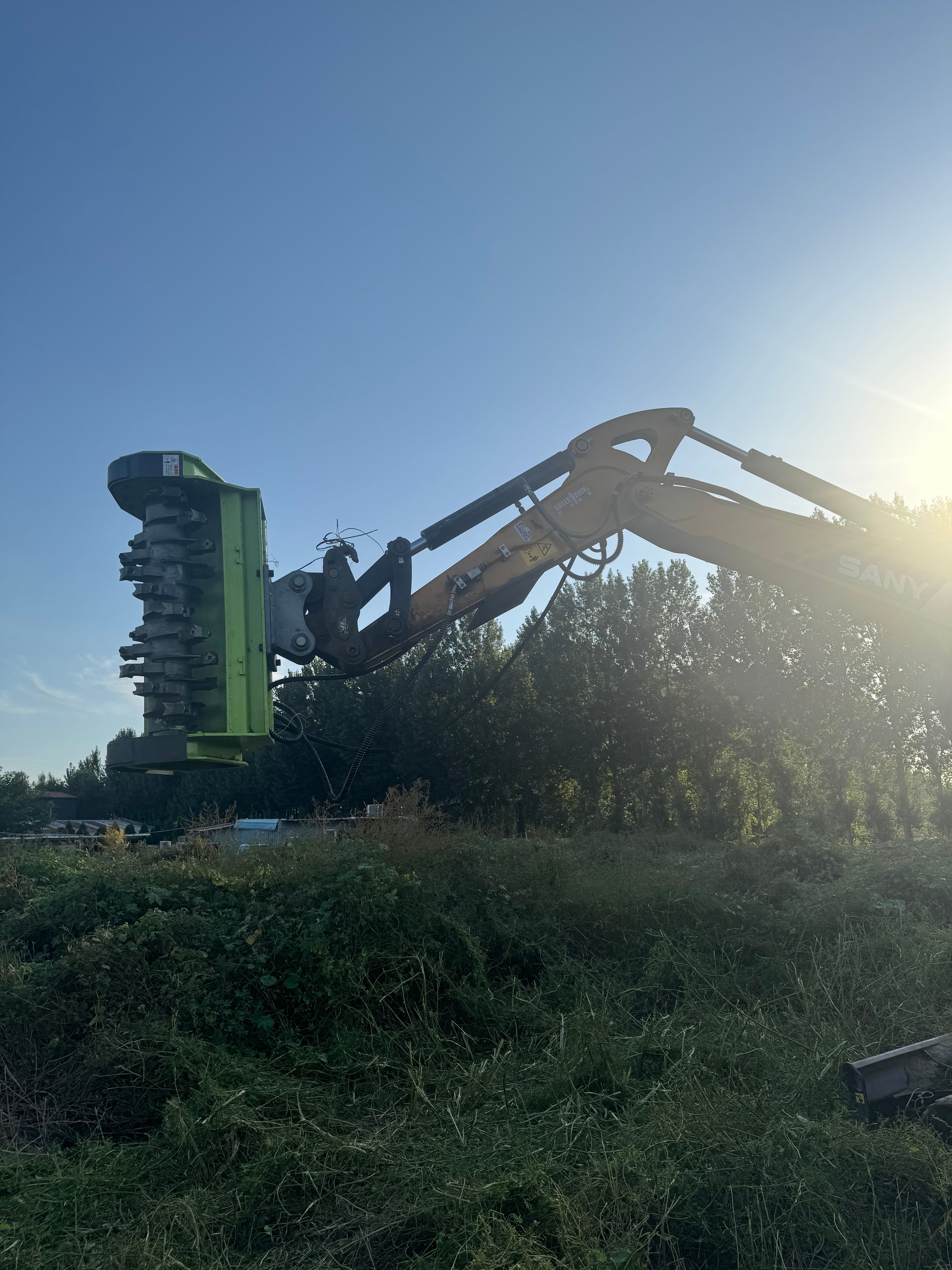

Real product photography of the PANDA FORCE Excavator Brush Cutter range in field operation.

WhatsApp
